A flexible and modular machine learning framework designed to support leakage-free model training through custom cross-validation fold construction

Installation

You can install the development version of pipeML from GitHub with:

# install.packages("pak")
pak::pkg_install("VeraPancaldiLab/pipeML")

Description

pipeML is a flexible and leakage-aware machine learning framework for R designed for predictive modeling in high-dimensional biological data. The package integrates all key steps of the machine learning workflow — feature filtering, model training, validation, prediction, and interpretation — into a single reproducible pipeline.

A key design goal of pipeML is to support fold-aware feature construction, allowing features that depend on the dataset (e.g. enrichment scores, correlation-based features, or network-derived features) to be recomputed within each cross-validation fold. This prevents information leakage and ensures reliable performance estimation.

The framework is designed to integrate naturally with R/Bioconductor workflows, making it particularly suitable for omics and biomedical machine learning applications.

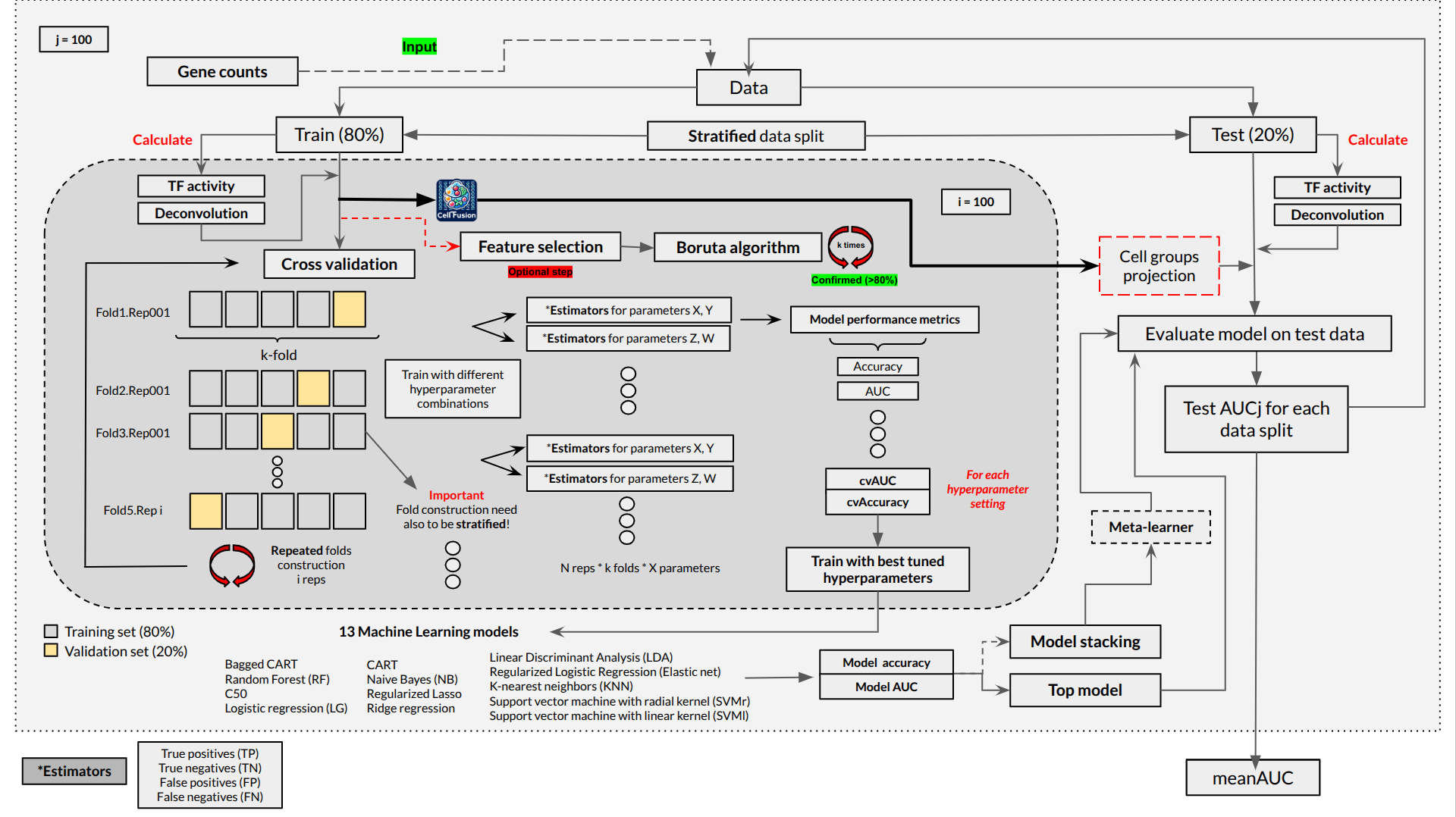

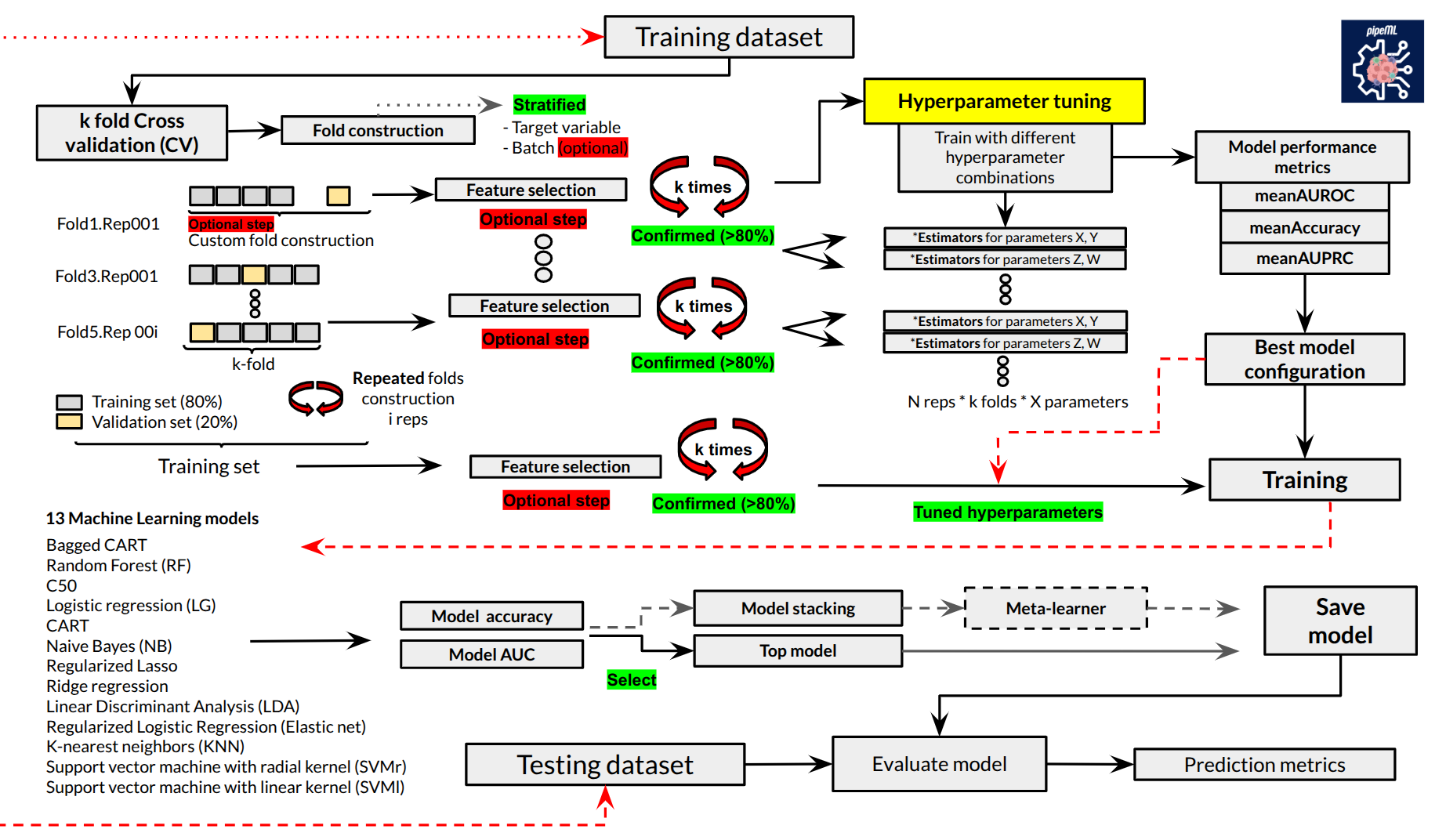

Figure 1. General structure of the pipeML machine learning pipeline.

Key Features

End-to-end ML workflow

Integrated pipeline for feature filtering, model training, validation, prediction, and interpretation

Leakage-aware validation

Custom cross-validation fold construction
Support for fold-aware feature recomputation
Prevents information leakage when using dataset-dependent features

Flexible model evaluation

Repeated and stratified k-fold cross-validation
Leave-one-dataset-out (LODO) evaluation for cross-cohort generalization

Feature filtering

Near-constant and highly correlated features are removed from the training features (preprocess = TRUE, the default): once before the cross-validation, or inside each fold for features built by custom fold functions

Hyperparameter tuning

Automatic optimization based on:
- AUROC
- AUPRC
- C-index (survival)

Model interpretation

SHAP values of the selected model, per sample and as global feature importance
Performance visualization (ROC and PR curves with bootstrap confidence bands, Kaplan-Meier curves by predicted risk group)

Parallel computing

Multi-core support for faster model training and cross-validation

Custom workflows

Users can define custom fold construction functions
The parameters of the feature construction can be tuned inside the cross-validation, like model hyperparameters
These functions receive a bestune argument after tuning, to rebuild the features on the full training dataset for the final model

Supported Machine Learning Methods

Classification algorithms:

For classification tasks, we implemented a diverse set of classification algorithms that are benchmarked on the fly making extensive use of the R package caret.

Bagged classification trees
Random forests
C5.0 decision trees
Regularized logistic regression (elastic net)
k-nearest neighbors (KNN)
Classification and regression trees (CART)
Lasso regression
Ridge regression
Support vector machines with linear and radial kernels
Extreme Gradient Boosting (XGBoost)

Survival algorithms:

For time-to-event outcomes, pipeML implements a unified survival modeling framework based on the parsnip and workflows ecosystems, enabling consistent training, hyperparameter tuning, and evaluation across multiple survival model families.

Cox proportional hazards model
Elastic net–regularized Cox regression
Parametric accelerated failure time (AFT) models
Conditional inference survival trees
Bagged CART survival models
Oblique random survival forests

General usage

Below are basic examples showing how to use pipeML. For detailed tutorials, see Get started and the Articles.

Results (plots, fold files of custom workflows) are written to a Results/ folder in the working directory.

library(pipeML)

data <- data_example_classification
X <- data[, setdiff(colnames(data), "target")]
y <- data$target

set.seed(123)
train_idx <- caret::createDataPartition(y, p = 0.7, list = FALSE)
X_train <- X[train_idx, ]
X_test <- X[-train_idx, ]
y_train <- y[train_idx]
y_test <- y[-train_idx]

Training models

res <- compute_features.training.ML(features_train = X_train,
                                    target_var = y_train,
                                    task_type = "classification",
                                    trait.positive = "1",
                                    metric = "AUROC",
                                    k_folds = 5,
                                    n_rep = 10,
                                    ncores = 2)

Predicting on new data

pred = compute_prediction(model = res$Model,
                          test_data = X_test,
                          target_var = y_test,
                          task_type = "classification",
                          trait.positive = "1")
pred$AUC

Explaining the model

shap <- compute_shap_values(model_trained = res$Model, task_type = "classification")

Training and Testing Workflow

res <- compute_features.ML(features_train = X_train,
                           features_test = X_test,
                           coldata = data,
                           task_type = "classification",
                           trait = "target",
                           trait.positive = "1",
                           metric = "AUROC",
                           k_folds = 5,
                           n_rep = 10,
                           ncores = 2)

Issues

If you encounter any problems or have questions about the package, we encourage you to open an issue here. We’ll do our best to assist you!

Authors

pipeML was developed by Marcelo Hurtado in supervision of Vera Pancaldi and is part of the Pancaldi team. Currently, Marcelo is the primary maintainer of this package.

Citing pipeML

If you use pipeML in a scientific publication, please cite:

Hurtado, M., & Pancaldi, V. (2026). A new pipeline for cross-validation fold-aware machine learning prediction of clinical outcomes addresses hidden data-leakage in omics based ‘predictors’. bioRxiv. https://doi.org/10.64898/2026.03.12.711429
