Getting started with RaCInG

Overview

RaCInG reconstructs patient-specific cell-cell communication networks from bulk RNA-seq data. The package supports two complementary workflows:

a kernel-based approach for fast deterministic feature extraction, and
a Monte Carlo approach for simulation-based network summaries.

This vignette shows the recommended workflow and the most important entry points for new users, using both the bundled, ready-made example data and a real bulk RNA-seq counts matrix run through the full preprocessing pipeline.

Installation

Install from GitHub

# install.packages("remotes")
remotes::install_github("VeraPancaldiLab/RaCInG_package")
library(RaCInG)

Install from a local checkout

# install.packages("devtools")
devtools::install(".")
library(RaCInG)

If you want to build the RaCInG input matrices directly from raw counts, install the optional preprocessing dependencies used by prepare_input_files():

install.packages(c("ggplot2", "nnls"))
# ADImpute and OmnipathR are available from Bioconductor:
BiocManager::install(c("ADImpute", "OmnipathR"))
# liana and multideconv are GitHub-only:
remotes::install_github(c("saezlab/liana", "VeraPancaldiLab/multideconv"))

Workflow at a glance

Goal	Function	Output
Build input matrices from raw counts	`prepare_input_files()`	Named list with `L`, `R`, `C`, `LR` matrices and labels
Compute deterministic features	`compute_racing_kernel()`	Kernel arrays + feature matrix
Compute simulation summaries	`compute_racing_montecarlo()`	Processed Monte Carlo results
Decompose a score into ligand-receptor pairs	`computeLRContributions()` / `computeWedgeLRContributions()` / `computeTriangleLRContributions()` + `plotLRContributions()`	Ranked contributions and a LIANA-style dot plot
Compare clinical groups	`wilcox_group_test()` + `top_features_plot()`	Statistics table and ranked bar plot
Relate features to a continuous score	`correlate_features_with_score()` + `correlation_plot()`	Correlation table and rainfall plot

How `prepare_input_files()` builds its inputs

Starting from a raw gene-by-sample counts matrix, prepare_input_files() chains together several packages so you never have to run them by hand:

Normalization: counts are converted to TPM with ADImpute::NormalizeTPM().
Deconvolution: cell-type fractions are estimated with multideconv::compute.deconvolution() (defaults to the Quantiseq method, but any method(s) supported by multideconv can be passed via deconv_method).
Subgroup analysis: multideconv::compute.deconvolution.analysis() identifies groups of highly correlated deconvolution features (e.g. several methods agreeing on the same cell type) and collapses them into a single column per resolved cell type, discarding low-quality/high-zero features along the way. Column names are then standardized and stripped of any method/signature prefix, giving short, consistent cell-type labels (e.g. "B.cells", "CD4.regulatory").
Cell-type expression profiles: for every gene, a non-negative least squares fit of bulk expression against the cell-type fractions gives one expression value per gene per resolved cell type.
Ligand-receptor prior knowledge: a curated, OmniPath-backed consensus network is retrieved with liana::get_curated_omni() and restricted to ligand/receptor roles, then decomplexified into single-gene subunits.
Filtering and assembly: ligand-receptor pairs are kept only where both genes are expressed above 10 TPM in the relevant cell types, and the Lmatrix, Rmatrix, Cmatrix, and LRmatrix inputs (see below) are assembled and written to output_folder.

You can skip any of steps 2-5 by supplying your own deconv, cell_expr_profile, or cc_network directly.

Recommended workflow with a real bulk RNA-seq dataset

The examples below use the raw bulk RNA-seq counts matrix bundled with the multideconv package (raw_counts, from Mariathasan et al. 2018, a urothelial/bladder cancer cohort profiled for anti-PD-L1 response) to exercise the full pipeline end to end, from raw counts to features to statistics. These chunks call out to the network (OmniPath/LIANA) and run real deconvolution, so they are shown but not evaluated when the vignette is built; run them interactively to try the full pipeline yourself.

1. Build input matrices from raw counts

data(raw_counts, package = "multideconv")
counts_matrix <- as.matrix(raw_counts)

input <- prepare_input_files(
  counts = counts_matrix,
  output_folder = "Results/",
  file_name = "mariathasan",
  deconv_method = "Quantiseq"
)

str(input, max.level = 1)
input$celltypes

2. Run the kernel method

The kernel method is the fastest way to derive direct, wedge, triangle, or GSCC features across patients. You can pass counts to let the function compute inputs automatically, or supply previously computed matrices via input_data.

# Option A: from raw counts (runs prepare_input_files internally)
kernel_res <- compute_racing_kernel(
  counts = counts_matrix,
  output_folder = tempdir(),
  file_name = "mariathasan",
  communication_type = "W",
  norm = TRUE
)

# Option B: from pre-computed input matrices (skips preprocessing)
kernel_res <- compute_racing_kernel(
  input_data = input,
  communication_type = "W",
  norm = TRUE
)

head(kernel_res$features[, 1:5])

Feature columns with no possible ligand-receptor pathway in any patient (structurally zero for every patient) are dropped automatically, rather than returned as dead all-zero columns – so ncol(kernel_res$features) is usually well below the full combinatorial count of cell-type combinations.

communication_type also accepts a vector, e.g. c("D", "W", "TT", "GSCC"). The kernel itself (the expensive analytic step) is only ever computed once regardless of how many types you request, so if you want more than one feature family there is no need to call compute_racing_kernel() again – request them all in one call instead:

kernel_res <- compute_racing_kernel(
  input_data = input,
  communication_type = c("D", "W", "TT", "GSCC"),
  norm = TRUE
)

# features is now a named list, one data frame per requested type
names(kernel_res$features)
head(kernel_res$features$D[, 1:5])

3. Run the Monte Carlo method

Use the Monte Carlo workflow when you want simulation-based summaries or uncertainty estimates from repeated graph realizations. The same input_data shortcut is available here. Simulation cost scales with Ncells and Ngraphs; the values below are kept small for a quick illustration.

set.seed(1)
mc_res <- compute_racing_montecarlo(
  counts = counts_matrix,
  output_folder = tempdir(),
  deconv_method = "Quantiseq",
  file_name = "mariathasan",
  nPatients = 3,
  communication_type = "W",
  Ncells = 100,
  Ngraphs = 10,
  Ndegree = 3,
  norm = TRUE
)

# Or from pre-computed inputs:
mc_res <- compute_racing_montecarlo(
  input_data = input,
  output_folder = tempdir(),
  file_name = "mariathasan",
  communication_type = "W",
  Ncells = 100,
  Ngraphs = 10,
  Ndegree = 3,
  norm = TRUE
)

head(mc_res$output$mean[, 1:5])

As with the kernel method, communication_type accepts a vector (any combination of "D", "W", "TT", "CT", "GSCC"). Every requested type is extracted from the same simulated graphs, instead of re-simulating a fresh set of graphs per type – graph generation, not feature extraction, is the expensive part of a Monte Carlo run:

mc_res <- compute_racing_montecarlo(
  input_data = input,
  communication_type = c("D", "W", "TT", "CT", "GSCC"),
  Ncells = 100,
  Ngraphs = 10,
  Ndegree = 3,
  norm = TRUE,
  output_folder = tempdir(),
  file_name = "mariathasan"
)

# output is now a named list, one entry per requested type
names(mc_res$output)
head(mc_res$output$D$mean[, 1:5])

Patients are independent of each other, so larger runs can be parallelized across cores with ncores (via parallel/doParallel/foreach, so it works the same way on Windows, macOS, and Linux):

mc_res <- compute_racing_montecarlo(
  input_data = input,
  communication_type = "D",
  Ncells = 500,
  Ngraphs = 100,
  Ndegree = 20,
  ncores = 4,
  output_folder = tempdir(),
  file_name = "mariathasan"
)

4. Compare clinical groups

Once features are available in a patient-by-feature matrix, use the built-in Wilcoxon workflow to compare groups. wilcox_group_test() reports, per feature and per pair of groups, the Wilcoxon statistic, fold change, and (jointly) FDR-adjusted p-value; top_features_plot() shows the top up/down features by log2(fold change) as a ranked bar chart.

grouping <- c("Responder", "Responder", "Non-responder", "Non-responder")
wilcox_results <- wilcox_group_test(kernel_res$features, grouping)
head(wilcox_results)
top_features_plot(wilcox_results, top_n = 15)

With more than two groups, every pairwise comparison is run automatically; subset wilcox_results by Comparison (or pass a two-group subset to top_features_plot()) to inspect one pair at a time.

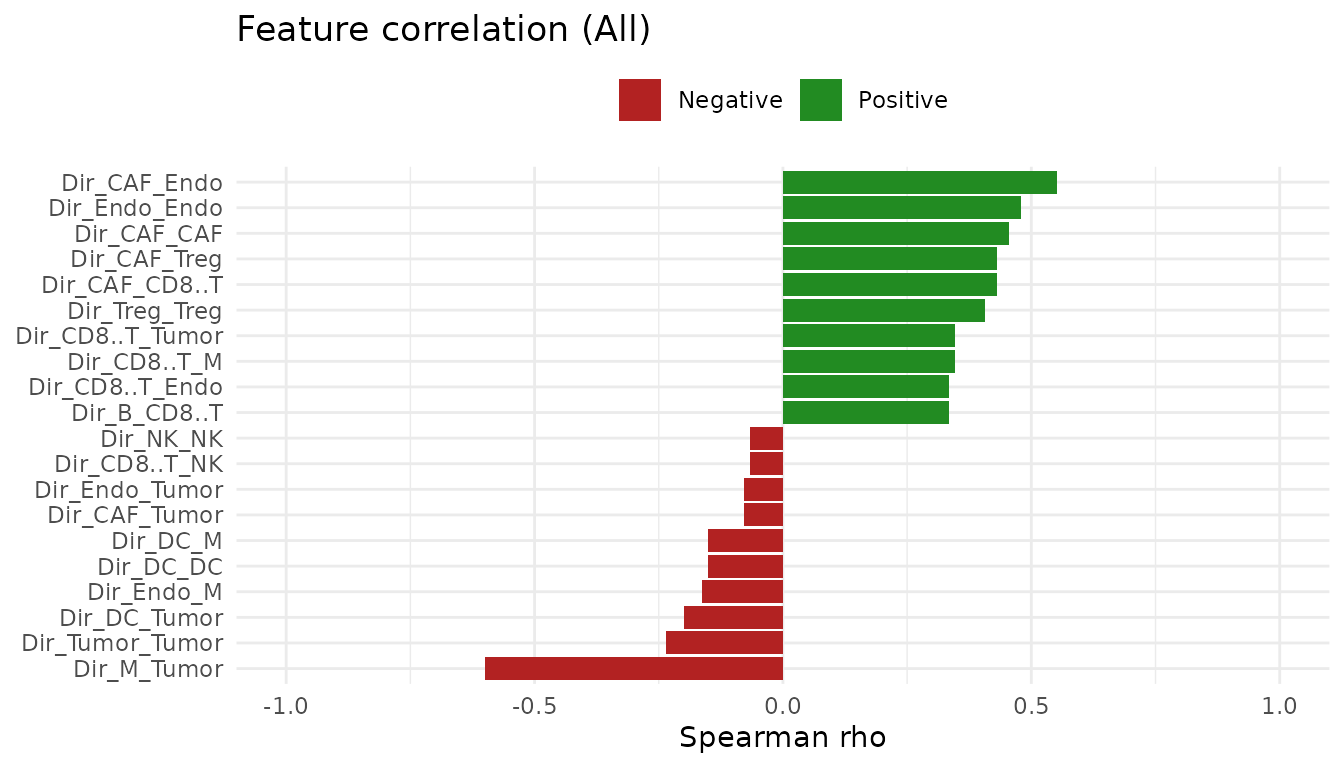

5. Correlate features with a continuous score

If you have a continuous per-patient score (e.g. an immune response or survival score), correlate_features_with_score() reports the Spearman correlation between every feature and the score, pooled across all patients and, optionally, within groups. correlation_plot() shows the top positive and negative correlations.

response_score <- setNames(rnorm(nrow(kernel_res$features)), rownames(kernel_res$features))
corr_results <- correlate_features_with_score(kernel_res$features, response_score)
head(corr_results)
correlation_plot(corr_results, top_n = 10)

Notes

compute_racing_kernel() and compute_racing_montecarlo() are the main entry points.
Both accept an input_data argument with pre-computed matrices (as returned by prepare_input_files()), which skips all preprocessing.
prepare_input_files() requires the optional packages listed under Installation for deconvolution and prior-network assembly.
The original Python implementation is available at https://github.com/SysBioOncology/RaCInG.

Understanding the input files

RaCInG requires four matrices and associated label vectors that describe the cell-cell communication landscape for a cohort of patients. The table below summarises each component:

Component	Dimensions	Description
Lmatrix	cell types × ligands	Binary compatibility matrix: `1` if that ligand is expressed above `expr_threshold` in that cell type, `0` otherwise. Rows are cell types; columns are ligands.
Rmatrix	cell types × receptors	Binary compatibility matrix: `1` if that receptor is expressed above `expr_threshold` in that cell type, `0` otherwise. Same row order as `Lmatrix`.
Cmatrix	patients × cell types	Cell-type fraction for each patient. Each row sums to 1.
LRmatrix	ligands × receptors × patients	3-D tensor of ligand–receptor interaction weights. Each patient slice is normalised to sum to 1.
celltypes	character vector	Alphabetically sorted cell-type names (shared across L, R, and C).
ligands	character vector	Ligand names matching the columns of `Lmatrix` and the first axis of `LRmatrix`.
receptors	character vector	Receptor names matching the columns of `Rmatrix` and the second axis of `LRmatrix`.
Sign_matrix	ligands × receptors	Optional matrix encoding known stimulatory (+1) or inhibitory (−1) interactions. Zeros indicate unknown.

These inputs are typically generated by prepare_input_files() from a raw counts matrix, or they can be assembled manually from pre-existing deconvolution and prior-network data. The bundled skcm_example dataset provides a ready-made example of this structure.

Inspecting the example inputs

library(RaCInG)
data(skcm_example)

# Overall structure
str(skcm_example, max.level = 1)
#> List of 8
#>  $ Lmatrix    : num [1:9, 1:276] 1 0 1 1 1 1 1 1 0 1 ...
#>   ..- attr(*, "dimnames")=List of 2
#>  $ Rmatrix    : num [1:9, 1:298] 1 0 1 1 0 1 1 1 0 0 ...
#>   ..- attr(*, "dimnames")=List of 2
#>  $ Cmatrix    : num [1:10, 1:9] 0.00374 0.01407 0.02119 0 0.00313 ...
#>   ..- attr(*, "dimnames")=List of 2
#>  $ LRmatrix   : num [1:276, 1:298, 1:10] 0.000228 0 0 0 0 ...
#>  $ celltypes  : chr [1:9] "B" "CAF" "CD8+ T" "DC" ...
#>  $ ligands    : chr [1:276] "LGALS9" "ADAM10" "TNFSF12" "ICOSLG" ...
#>  $ receptors  : chr [1:298] "PTPRC" "MET" "CD44" "LRP1" ...
#>  $ Sign_matrix: num [1:276, 1:298] 0 0 0 0 0 0 0 0 0 0 ...

# Lmatrix: 9 cell types × 276 ligands
dim(skcm_example$Lmatrix)
#> [1]   9 276
skcm_example$Lmatrix[1:4, 1:5]
#>      LGALS9 ADAM10 TNFSF12 ICOSLG TNF
#> [1,]      1      1       1      1   1
#> [2,]      0      1       1      0   0
#> [3,]      1      1       1      0   1
#> [4,]      1      1       1      1   1

# Rmatrix: 9 cell types × 298 receptors
dim(skcm_example$Rmatrix)
#> [1]   9 298
skcm_example$Rmatrix[1:4, 1:5]
#>      PTPRC MET CD44 LRP1 CD47
#> [1,]     1   0    1    0    1
#> [2,]     0   1    1    1    1
#> [3,]     1   0    1    0    1
#> [4,]     1   0    1    1    1

# Cmatrix: 10 patients × 9 cell types (rows sum to 1)
dim(skcm_example$Cmatrix)
#> [1] 10  9
skcm_example$Cmatrix[1:4, ]
#>                B         CAF          CD8          DC        Endo         M1
#> [1,] 0.003742534 0.017784413 0.0004763235 0.002384983 0.007165426 0.01515965
#> [2,] 0.014074525 0.019407444 0.0807858943 0.062715975 0.004718812 0.07897314
#> [3,] 0.021190628 0.007153891 0.0166497814 0.012495442 0.012443088 0.03645401
#> [4,] 0.000000000 0.038687885 0.0000000000 0.000942249 0.025184327 0.02306847
#>                NK       Treg     Tumor
#> [1,] 6.110609e-10 0.01089191 0.9423948
#> [2,] 6.783486e-04 0.02023155 0.7184143
#> [3,] 6.351805e-04 0.00000000 0.8929780
#> [4,] 4.680075e-09 0.00000000 0.9121171

# LRmatrix: 276 ligands × 298 receptors × 10 patients (3-D tensor)
dim(skcm_example$LRmatrix)
#> [1] 276 298  10
# First patient slice, top-left corner:
skcm_example$LRmatrix[1:4, 1:4, 1]
#>              [,1]        [,2]        [,3]        [,4]
#> [1,] 0.0002281731 0.001269455 0.001846635 0.001846635
#> [2,] 0.0000000000 0.001269455 0.003174809 0.000000000
#> [3,] 0.0000000000 0.000000000 0.000000000 0.000000000
#> [4,] 0.0000000000 0.000000000 0.000000000 0.000000000

# Label vectors
skcm_example$celltypes
#> [1] "B"      "CAF"    "CD8+ T" "DC"     "Endo"   "M"      "NK"     "Treg"
#> [9] "Tumor"
head(skcm_example$ligands, 10)
#>  [1] "LGALS9"   "ADAM10"   "TNFSF12"  "ICOSLG"   "TNF"      "HLA.B"
#>  [7] "HLA.DRA"  "HLA.DQA2" "HLA.DQA1" "HLA.DQB1"
head(skcm_example$receptors, 10)
#>  [1] "PTPRC"   "MET"     "CD44"    "LRP1"    "CD47"    "PTPRK"   "COLEC12"
#>  [8] "HAVCR2"  "MRC2"    "TSPAN15"

Running with the bundled example data

The skcm_example list shown above can be passed directly to the kernel or Monte Carlo workflows via the input_data parameter, and to the statistical analysis functions once features have been computed.

Kernel method on the example data

kernel_res <- compute_racing_kernel(
  input_data   = skcm_example,
  output_folder = tempdir(),
  communication_type = "D",
  norm = TRUE
)
#> Using pre-computed input matrices; skipping input generation.
#> Computing kernel for  10  patients
#> Calculating kernel...
#> Calculating features...

head(kernel_res$features[, 1:5])
#>             Dir_B_B Dir_B_CAF Dir_B_CD8..T   Dir_B_DC Dir_B_Endo
#> Patient_1 0.3655633 0.6472004    0.2193690 0.33179690  0.6839505
#> Patient_2 0.7127917 0.5965352    1.0316271 0.84989477  0.6860757
#> Patient_3 1.1609442 0.7959182    0.8781016 0.92070117  0.8362820
#> Patient_4 0.4675364 0.4900159    0.1068774 0.09173062  0.3913845
#> Patient_5 0.2765913 0.5799559    0.1661719 0.37846202  0.4973818
#> Patient_6 0.4209898 0.5559673    0.7787024 0.51126999  0.6621874

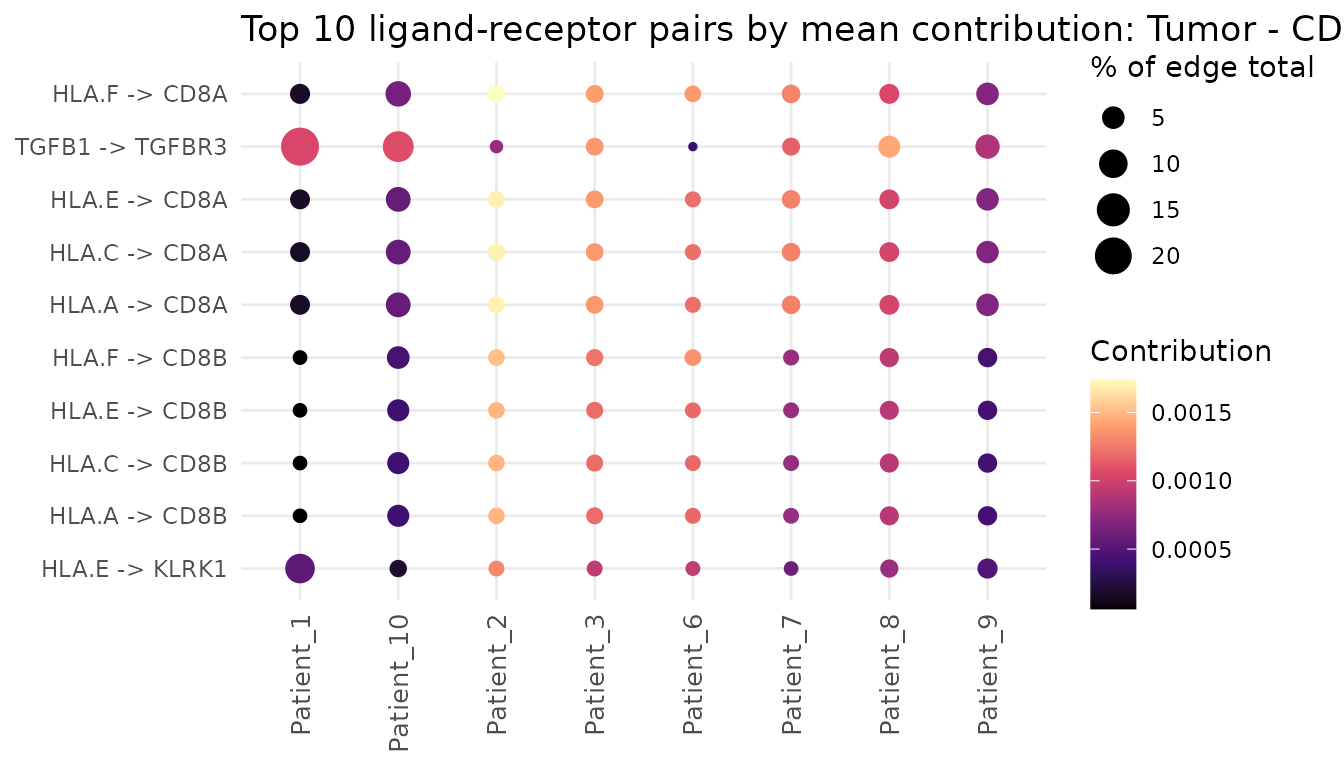

Decomposing a score into ligand-receptor pairs

compute_kernel() sums over every ligand-receptor pair to produce one score per cell-type pair, so that score alone can’t tell you which ligand-receptor pairs drove it. computeLRContributions() recovers that breakdown for one sender-receiver pair (exploiting that the kernel formula is linear in LRmatrix, so each pair’s contribution can be computed directly and sums back exactly to the original score), and plotLRContributions() shows the top contributors as a LIANA-style dot plot (dot size = share of that pair’s total score, color = raw contribution).

lr_contrib <- computeLRContributions(
  Lmatrix = skcm_example$Lmatrix, Rmatrix = skcm_example$Rmatrix,
  Cmatrix = skcm_example$Cmatrix, LRmatrix = skcm_example$LRmatrix,
  celltypes = skcm_example$celltypes, sender = "Tumor", receiver = "CD8+ T"
)
head(lr_contrib)
#>     Patient             Edge Sender Receiver Ligand Receptor Contribution
#> 1 Patient_1 Tumor <-> CD8+ T  Tumor   CD8+ T  TGFB1   TGFBR3 0.0010444341
#> 2 Patient_1 Tumor <-> CD8+ T  Tumor   CD8+ T  HLA.E    KLRK1 0.0005353052
#> 3 Patient_1 Tumor <-> CD8+ T  Tumor   CD8+ T    ADM    VIPR1 0.0002670687
#> 4 Patient_1 Tumor <-> CD8+ T  Tumor   CD8+ T  HLA.F     CD8A 0.0001695168
#> 5 Patient_1 Tumor <-> CD8+ T  Tumor   CD8+ T  HLA.A     CD8A 0.0001652873
#> 6 Patient_1 Tumor <-> CD8+ T  Tumor   CD8+ T  HLA.C     CD8A 0.0001652873
#>   PctOfTotal
#> 1  21.519765
#> 2  11.029554
#> 3   5.502746
#> 4   3.492763
#> 5   3.405619
#> 6   3.405619
plotLRContributions(lr_contrib, top_n = 10)

The same decomposition extends to Wedges (computeWedgeLRContributions()) and Triangles (computeTriangleLRContributions()): since those motifs multiply their edges together rather than sum them, each function instead decomposes every individual edge of the motif separately (PctOfTotal is then relative to that edge’s own score, not the whole motif), which plotLRContributions() shows faceted by edge.

Statistical analysis on the example data

set.seed(1)
grouping <- sample(c("GroupA", "GroupB"), nrow(kernel_res$features), replace = TRUE)
wilcox_results <- wilcox_group_test(kernel_res$features, grouping)
head(wilcox_results)
#>         Comparison      Feature Wilcox_statistic Fold_change      Log2FC
#> 1 GroupA_vs_GroupB      Dir_B_B               15   1.2465145  0.31789965
#> 2 GroupA_vs_GroupB    Dir_B_CAF               17   1.2144863  0.28034627
#> 3 GroupA_vs_GroupB Dir_B_CD8..T               13   1.2607549  0.33428785
#> 4 GroupA_vs_GroupB     Dir_B_DC               12   0.9837813 -0.02359046
#> 5 GroupA_vs_GroupB   Dir_B_Endo               17   1.2748348  0.35031028
#> 6 GroupA_vs_GroupB      Dir_B_M               15   1.0120194  0.01723701
#>     P_value Adjusted_P_value
#> 1 0.6095238                1
#> 2 0.3523810                1
#> 3 0.9142857                1
#> 4 1.0000000                1
#> 5 0.3523810                1
#> 6 0.6095238                1
top_features_plot(wilcox_results, top_n = 10)
#> top_features_plot(): no features passed Adjusted_P_value < 0.05 (smallest Adjusted_P_value observed: 1). Nothing to plot.

response_score <- setNames(rnorm(nrow(kernel_res$features)), rownames(kernel_res$features))
corr_results <- correlate_features_with_score(kernel_res$features, response_score)
head(corr_results)
#>   Group      Feature       Rho   P_value Adjusted_P_value
#> 1   All    Dir_B_CAF 0.1272727 0.7328868        0.9699973
#> 2   All Dir_B_CD8..T 0.3333333 0.3488462        0.9699973
#> 3   All   Dir_B_Endo 0.2363636 0.5138983        0.9699973
#> 4   All      Dir_B_M 0.1272727 0.7328868        0.9699973
#> 5   All     Dir_B_NK 0.1393939 0.7072038        0.9699973
#> 6   All   Dir_B_Treg 0.2484848 0.4915555        0.9699973
correlation_plot(corr_results, top_n = 10)

Monte Carlo method on the example data

set.seed(42)
mc_res <- compute_racing_montecarlo(
  input_data   = skcm_example,
  output_folder = tempdir(),
  file_name     = "skcm_example",
  nPatients     = 2,
  communication_type = "W",
  Ncells  = 100,
  Ngraphs = 5,
  Ndegree = 3,
  norm    = TRUE
)
