Integrative pipeline for cell type deconvolution from bulk RNAseq using first and second generation methods • multideconv

An integrative pipeline for combining first and second generation cell type deconvolution results

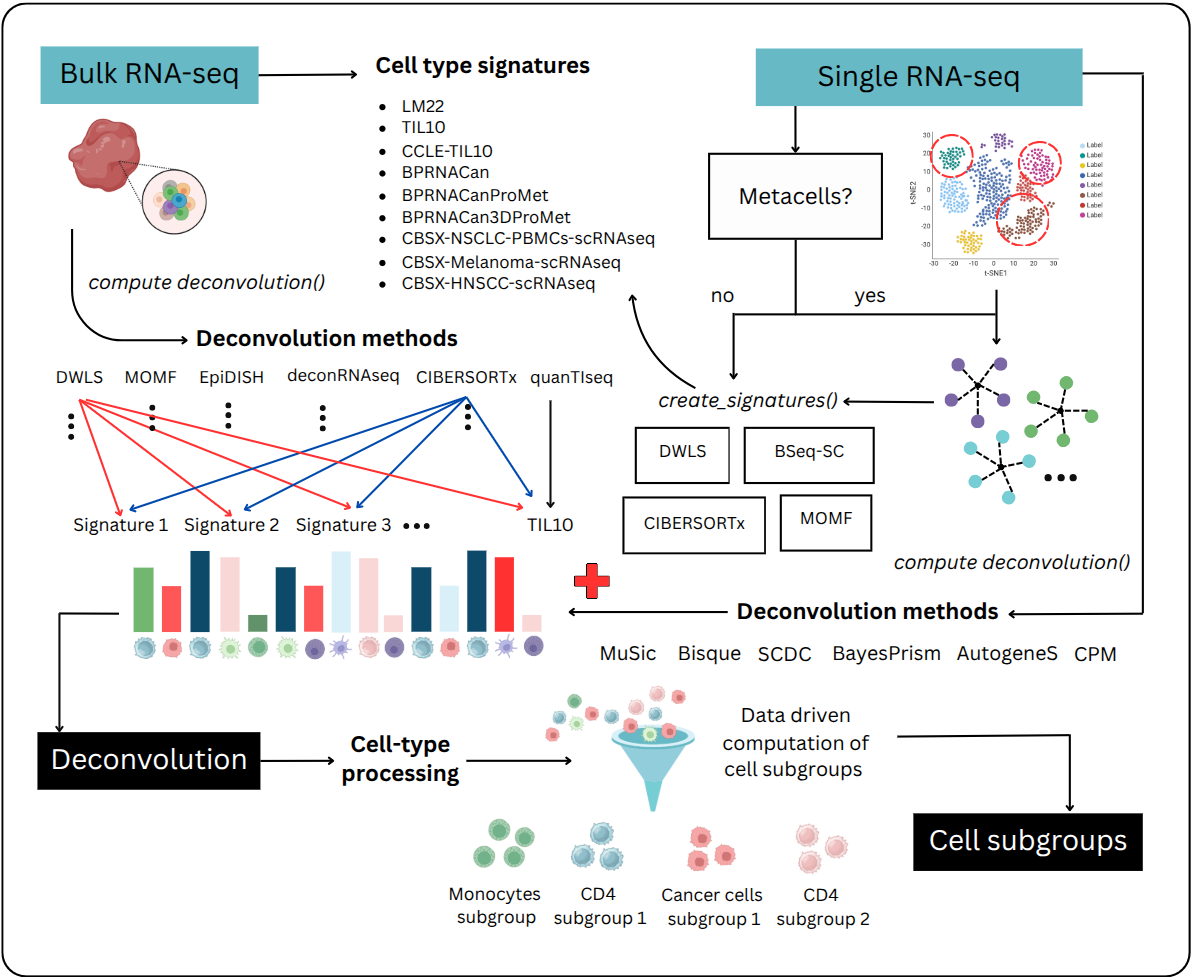

Figure 1. A schematic overview of the multideconv pipeline

Installation

To avoid GitHub API rate limit issues during installation, we recommend setting up GitHub authentication by creating and storing a Personal Access Token (PAT). You can do this with the following steps:

# install.packages(c("usethis", "gitcreds"))
usethis::create_github_token() #Create a Personal Access Token (if you don't have)
gitcreds::gitcreds_set() #Add the token

You can install the development version of multideconv from GitHub with:

# install.packages("pak")
pak::pkg_install("VeraPancaldiLab/multideconv")

General usage

These are basic examples which shows you how to use multideconv for different tasks. For a detailed tutorial, see Get started

Before running multideconv, make sure to set your working directory. The Results/ folder, where outputs will be saved, will be created in this directory.

setwd('~/path/to/directory')
library(multideconv)

The function calculates cell abundance based on cell type signatures using different methods and signatures through the function compute.deconvolution which takes as input the bulk RNAseq gene expression matrix either as raw or normalized counts.

deconv = compute.deconvolution(raw.counts, normalized = T, credentials.mail = "xxxx", credentials.token = "xxxxxx", file_name = "Tutorial")
deconv = compute.deconvolution(raw.counts, normalized = T, credentials.mail = "xxxx", credentials.token = "xxxxxx", methods = c("Quantiseq", "MCP", "XCell", "DWLS"), file_name = "Test")
deconv = compute.deconvolution(raw.counts, normalized = T, credentials.mail = "xxxx", credentials.token = "xxxxxx", signatures_exclude = "BPRNACan", file_name = "Tutorial")
deconv = compute.deconvolution(raw.counts, normalized = T, credentials.mail = "xxxx", credentials.token = "xxxxxx", sc_deconv = T, sc_matrix = sc.object, cell_label = cell_labels, sample_label = bath_ids, name_sc_signature = "Signature_test", file_name = "Test")

NOTE: CIBERSORTx is included in the deconvolution methods, but it’s not an open-source program. To run it, please ask for a token in CIBERSORTx and once obtained, provided your username and password on the parameters credentials.mail and credentials.token.

Also CIBERSORTx ask to have docker install in your computer. Once installed, be sure to concede permission to manage docker as a non-root user. For verify this, go to the terminal and run:

docker ps

If you don’t have any error, congrats you are go to go!

If you receive an error of permission, just run:

sudo groupadd docker
sudo usermod -aG docker ${USER}

Then restart your computer and try again

docker ps

Now, you should be able to run deconvolution using CIBERSORTx without any problems :)

For processing the deconvolution features obtained from compute.deconvolution, you can use the compute.deconvolution.analysis function.

processed_deconvolution = compute.deconvolution.analysis(deconvolution, corr = 0.7, seed = 123, return = T)

Users can also compute second-generation deconvolution methods using their single cell data. For this use the function compute_sc_deconvolution_methods. Remember that this function is already included in compute.deconvolution when setting sc_deconv = T.

deconv_sc = compute_sc_deconvolution_methods(raw_counts, sc_object, sc_metadata, cell_annotations, samples_ids, name_object, normalized = T, n_cores = 4, cbsx_name = "XXX", cbsx_token = "XXX")

Cell types nomenclature

multideconv works based on established cell naming conventions (Figure 2) to simplify analysis and processing. Thus, if you would like to use your own deconvolution results or signatures, please make sure to follow these formats.

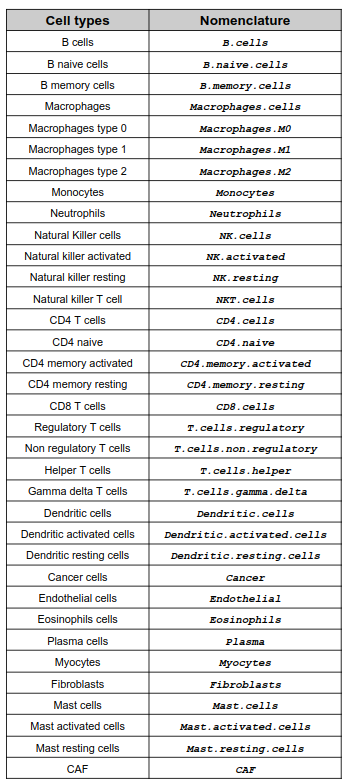

Figure 2. Cell types nomenclature for multideconv

How to add cell types other than the ones present in the nomenclature?

If you want multideconv to consider other cells, it is pretty simple! Just use the argument cells_extra in the function compute.deconvolution.analysis().

Let’s say you want to add mesenchymal and basophils cells:

processed_deconvolution = compute.deconvolution.analysis(deconvolution, corr = 0.7, seed = 123, cells_extra = c("mesenchymal", "basophils"))

And that’s it, just make sure the name you are putting in cells_extra is exactly the name of your cells in your deconvolution matrix!

How to add other signatures?

You can include other signatures into the analysis by adding them as .txt into the folder Results/custom_signatures.

How does my single cell data is used for deconvolution?

multideconv includes second generation methods that allows users to input single cell data and use it for constructing signatures ‘on-the-fly’ and deconvolve the bulk RNAseq data.

Because most of the times scRNAseq data can be big and sparse matrices, we applied ‘preprocessing’ steps to avoid crashing the computer. For this, multideconv construct metacells per cell type and patient from the single cell data using the KNN algorithm. This is done essentially by executing different tasks per cluster in parallel for N workers and once finished, it computes deconvolution using the reduced single cell object.

NOTE: If you encounter missing packages for certain deconvolution methods (e.g., MuSiC, SCDC) during the pipeline, make sure to install the versions maintained by the omnideconv team. These versions are patched to work seamlessly with omnideconv functions:

devtools::install_github("omnideconv/MuSiC")
devtools::install_github("omnideconv/SCDC")

Issues

If you encounter any problems or have questions about the package, we encourage you to open an issue here. We’ll do our best to assist you!

Authors

multideconv was developed by Marcelo Hurtado in supervision of Vera Pancaldi and is part of the Pancaldi team. Currently, Marcelo is the primary maintainer of this package.

Citing `multideconv`

If you use multideconv in a scientific publication, we would appreciate citation to the :

Hurtado, M., Essabbar, A., Khajavi, L., & Pancaldi, V. (2025). multideconv – Integrative pipeline for cell type deconvolution from bulk RNAseq using first and second generation methods. bioRxiv. https://doi.org/10.1101/2025.04.29.651220
